Upgrading Your Laptop Storage – A Comprehensive Guide for 2025

 Introduction: Why Laptop Storage Upgrades Matter

Laptops have become the hub for work, creativity and entertainment. Yet a common bottleneck remains: storage. A cramped or slow drive can make even a modern processor feel sluggish. Boot times stretch into half a minute, applications load slowly and file transfers drag on. Traditional hard disk drives (HDDs) top out around 30–150 MB/s, while solid‑state drives (SSDs) reach 500–3 500 MB/shp.com. The difference translates into much quicker boots, near‑instant application launches and improved responsiveness. An SSD‑equipped laptop can boot in about 10–15 seconds, whereas HDD‑based systems may take 30–40 secondshp.com.

These performance gains aren’t the only reason to upgrade. SSDs have no moving parts, so they’re more durable, quieter and consume less powerhp.com. The capacity landscape is also changing. Modern drives now range from 256 GB to multiple terabyteshp.com, and the average SSD capacity shipped in 2024 reached 1.05 TB360researchreports.com. In a 2024 market report, consumer preference shifted toward 1 TB and larger drives, which represented 42 % of retail SSD sales360researchreports.com. With creative files, games and virtual machines ballooning in size, many experts now recommend 1 TB as a sensible baseline for gamers and media professionals. Smaller capacities fill up quicklytensorscience.com, and once the drive nears full, performance can degrade because the operating system constantly swaps data between memory and disk.

This guide explains how to assess your needs, choose the right storage technology and upgrade safely. It is written for users in 2025, but the principles apply broadly. Whether you want more room for photos, a speed boost for games or enough space for an expanding project, this article has you covered.

{getToc} $title={Table of Contents} $count={Boolean} $expanded={Boolean}

---

Understanding Laptop Storage: SSD vs. HDD

What Is a Solid‑State Drive?

A solid‑state drive (SSD) stores data on flash memory chips. Unlike HDDs, it has no spinning platters or read/write heads. Key advantages include:

• Speed: SSDs deliver transfer rates from 500 MB/s to over 3 500 MB/shp.com. This accelerates boot times, application launches and file transfers.

• Durability: With no moving parts, SSDs resist shock and vibration betterhp.com.

• Energy efficiency: SSDs consume less power and generate less heat, boosting battery lifehp.com.

• Silence: They operate silently since there are no spinning diskshp.com.

SSDs come in several form factors:

• 2.5‑inch SATA SSDs – These replace traditional laptop drives. They are limited by the SATA interface (about 550 MB/s) but remain affordable.

• M.2 SATA – A small gum‑stick drive that still uses SATA speeds; common in ultrabooks.

• M.2 NVMe (PCIe) – The fastest consumer option. PCIe 4.0 drives like the Samsung 990 Pro deliver 7 450 MB/s read and 6 900 MB/s writetomshardware.com. New PCIe 5.0 models can hit 14.5 GB/stomshardware.com.

What Is a Hard Disk Drive?

A hard disk drive (HDD) stores data on spinning magnetic platters. A mechanical arm reads and writes data. Characteristics include:

• Large capacity at low cost: Drives up to 20 TB are availablehp.com.

• Slower performance: Read/write speeds range from 30–150 MB/shp.com. Booting and loading applications take longerhp.com.

• Noise and vibration: Spinning platters produce audible noise and can be damaged by sudden movementshp.com.

Many laptops now ship exclusively with SSDs, but some budget models still include HDDs or hybrid solutions (an SSD for the OS and an HDD for storage). In 2023, over 446 million SSDs were shipped globally360researchreports.com, indicating a shift away from mechanical drives. New gaming consoles adopt SSDs as the primary storage device360researchreports.com.

Choosing Between SSD and HDD

The right drive depends on your needs:

• Casual users: If you primarily browse the web, stream media and handle documents, a 256–512 GB SSD offers enough spacehp.com. SSDs make the system responsive and silent.

• Productivity and professional users: For office work, coding or light content creation, 512 GB–1 TB is recommendedhp.com. PCIe 4.0 or SATA drives are both suitable.

• Power users and gamers: Video editors, gamers and data scientists should aim for 1–2 TB SSDshp.com. 1 TB drives account for a large share of consumer sales in 2024360researchreports.com, and NVMe models deliver the speed to handle large files and complex workloads.

Large‑capacity HDDs remain useful for archive or bulk storage, where cost per gigabyte matters more than speed. A dual‑drive setup – an SSD for your operating system and active files plus an HDD for backups – offers the best of both worldshp.com. However, with SSD prices falling thanks to 3D NAND technology360researchreports.com, many users find high‑capacity SSDs affordable.

The Rise of NVMe and PCIe Generations

The storage interface influences speed more than capacity. Traditional 2.5‑inch drives use the SATA III interface, topping out at around 550 MB/s. The NVMe protocol over the PCIe bus removes bottlenecks and enables multi‑gigabyte per second speeds. In 2024, over 63 % of new enterprise SSDs adopted PCIe 4.0, and NVMe drives accounted for 72 % of client‑segment shipments360researchreports.com. PCIe 5.0, available on the latest Intel and AMD platforms, doubles throughput again, but these drives remain costlytomshardware.com.

When upgrading, check your laptop’s specifications. Many ultrabooks support M.2 NVMe drives, while older models may only support 2.5‑inch SATA. If your laptop uses an M.2 SATA drive, upgrading to an M.2 NVMe isn’t possible unless the motherboard supports PCIe lanes. Consult the manufacturer’s documentation or run system scanners offered by drive manufacturers (Crucial, Samsung) to confirm compatibility.

Recognizing When to Upgrade

Knowing when to upgrade helps you avoid performance headaches. Signs include:

1. Running out of space: If your drive is nearly full (90 % capacity or more), the system slows down as the OS has limited room for temporary files and caching. For creators and gamers, 512 GB fills quickly, so upgrading to 1 TB prevents constant juggling of filestensorscience.com.
2. Long boot and load times: If your laptop still runs on an HDD, switching to an SSD can cut boot times from 30–40 seconds to 10–15 secondshp.com.
3. Frequent swapping or “disk thrashing”: When RAM is insufficient, the OS uses the drive as a page file. If you hear the drive churning and experience freezing, additional storage space and memory will help.
4. High‑volume workloads: Video editing, 3D modelling, virtual machines or large datasets require fast I/O. NVMe SSDs dramatically reduce processing bottlenecks.
5. Drive health warnings: Use SMART monitoring tools to check for impending failure. If your drive has many reallocated sectors or a high power‑on hour count, plan to upgrade before it fails.

Remember that upgrading storage is not just about more gigabytes; it’s about having the right capacity and speed for your workflow.

Preparing for a Storage Upgrade

Before touching any screws, take these preparatory steps. They ensure that your data is safe and that the upgrade proceeds smoothly.

1 – Choose the Right Drive

Select a drive with the correct form factor, interface and capacity for your laptop. For many models, a 2.5‑inch SATA SSD offers the simplest upgrade. If your laptop uses an M.2 PCIe NVMe slot, choose an NVMe drive for better performance. Consider brand reliability and warranty as well. Industry reviews from Tom’s Hardware rank the Samsung 990 Pro as the best overall drive in 2025, offering sequential throughput of 7 450 MB/s read and 6 900 MB/s writetomshardware.com. Budget alternatives like the Crucial P3 or WD Blue SN570 deliver excellent value.

2 – Back Up Your Data

Always back up important files to an external drive or cloud service. The VPS Server guide emphasises that you should save key files to an external drive or the cloud before startingvpsserver.com. Backup tools such as Windows File History, Time Machine or third‑party software like Acronis True Image simplify this step.

3 – Gather Tools

You will need a small Phillips screwdriver, an ESD wrist strap or a metal object to ground yourself, and the new SSD. For laptops that use 2.5‑inch bays, a bracket or spacer may be needed to secure an SSD in a larger HDD baycrucial.com. If you plan to clone your existing drive, download disk cloning software (e.g., Macrium Reflect, Acronis, or 4DDiG Partition Manager). The VPS Server guide recommends selecting a reliable tool and explains that it supports sector‑to‑sector cloning for a seamless migrationvpsserver.com.

4 – Update Your Firmware and Drivers

Ensure your laptop’s BIOS/UEFI and storage controller drivers are up to date. New firmware improves compatibility with modern NVMe drives and may enable features like PCIe 4.0 support. Check the manufacturer’s website for the latest downloads.

5 – Decide Between Cloning and Fresh Installation

You have two options for migrating your data:

• Cloning copies your existing drive bit‑for‑bit to the new SSD. It preserves your operating system, applications and settings. Use this method if you don’t want to reinstall your OS. The VPS Server tutorial details how to choose a cloning tool and clone your diskvpsserver.com.

• Clean installation requires reinstalling the OS and applications, then restoring data from backup. This approach removes accumulated bloatware and is sometimes recommended when moving from a spinning drive to a fast NVMe SSD. Choose it if you’re comfortable reinstalling and want a fresh start.

Step‑by‑Step Guide: Physically Upgrading Your Laptop Storage

Disclaimer: Opening a laptop may void the warranty. Proceed at your own risk and consult your manufacturer’s service manual.

The steps below apply to most laptops. Always check your specific model’s service manual for detailed instructions.

Step 1 – Work in a Static‑Safe Environment

Static electricity can damage sensitive electronics. Crucial recommends removing plastic bags and paper from your work area and touching an unpainted metal surface or wearing an ESD wrist strap before handling internal componentscrucial.com. Never touch the gold connectors on your SSDcrucial.com.

Step 2 – Shut Down and Disassemble

1. Power off the laptop and unplug it. Hold down the power button for five seconds to discharge any residual electricitycrucial.com.
2. If your laptop has a removable battery, remove it. Some ultrabooks have sealed batteries; follow the manufacturer’s instructions.
3. Open the case. Most laptops have a service panel secured by Phillips screws. Use the correct screwdriver to avoid stripping screws. For models without a service panel, you may need to remove the entire bottom cover.

Step 3 – Locate the Existing Drive

Inside the laptop you will see the drive bay. On many models, the drive is secured with a bracket and screws. In older laptops, it may be a 2.5‑inch HDD or SSD; in newer ultrabooks, it might be an M.2 module. Note the orientation of the connectors before removal.crucial.com.

Step 4 – Remove the Old Drive

1. Disconnect the SATA or M.2 connector carefully. Don’t yank; slide the drive out gently.
2. If the drive uses a mounting bracket, transfer the bracket to the new SSD. Some laptops use rubber rails or foil adhesives; replicate the arrangement to ensure a snug fit.
3. Set the old drive aside in an anti‑static bag. You can repurpose it as a USB external drive with an enclosure or keep it for backup.

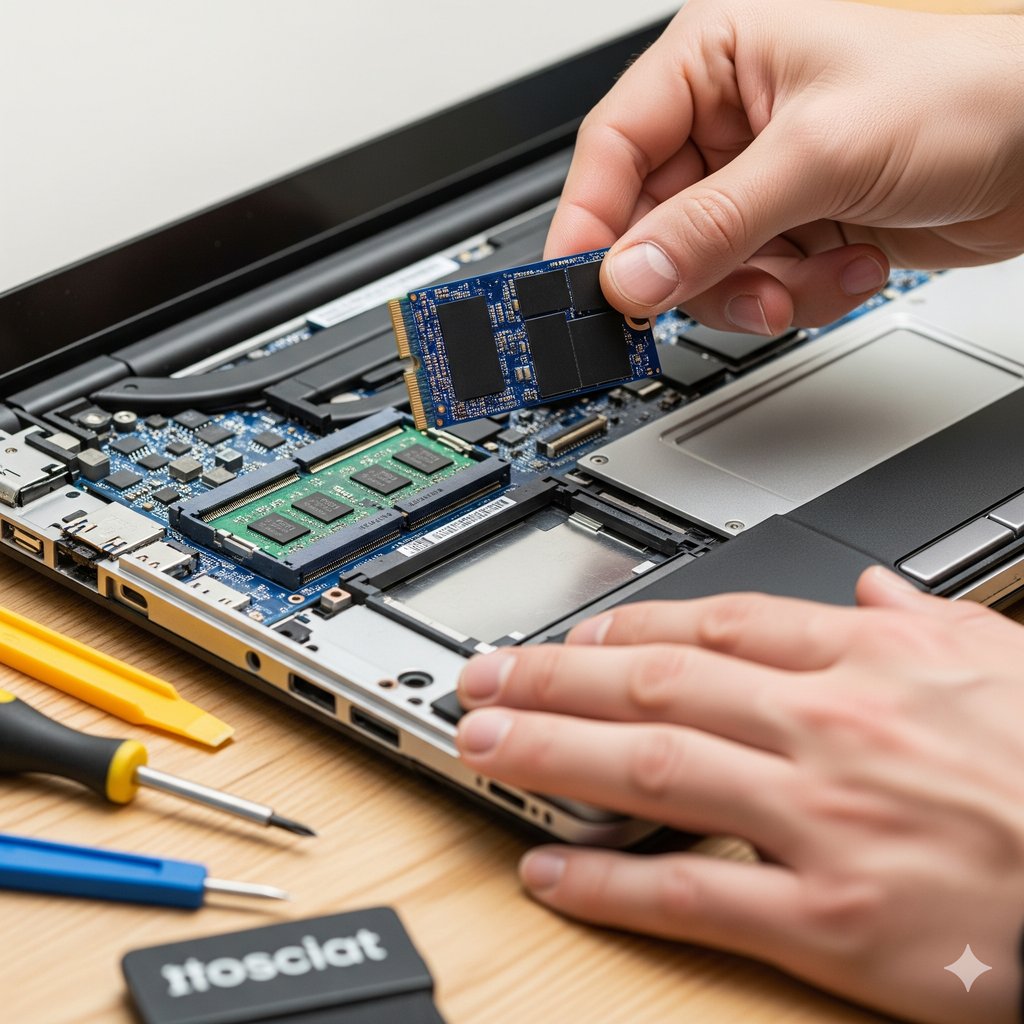

Step 5 – Install the New Drive

1. Align the connectors and gently insert the new SSD. Do not force it; it should seat easilycrucial.com.
2. For M.2 drives, insert the gold edge at a slight angle and secure the drive with a tiny screw. For 2.5‑inch drives, slide the drive into the bay and secure the bracket.
3. If installing the SSD as a secondary drive, connect a SATA cable from the motherboard and a power cable from the PSUcrucial.com. Laptops usually provide only one internal bay, so you may need to replace the original drive rather than add a second.

Step 6 – Reassemble and Power On

1. Replace the service panel or bottom cover. Tighten screws evenly but do not over‑tighten.
2. Insert the battery (if removed) and plug in the power adapter.
3. Power on the laptop. Enter the BIOS/UEFI to ensure the new drive is recognized. If you cloned the old drive, the laptop should boot normally. If you are doing a fresh installation, boot from a Windows or Linux installer USB.
4. The VPS Server guide explains how to configure boot priority by entering BIOS/UEFI and ensuring the new SSD is set as the primary boot drivevpsserver.com.

Step 7 – Initialize the Drive (if Necessary)

If you added the SSD as a secondary drive or are performing a clean install, the drive must be initialized:

1. Connect the drive via SATA or an adaptervpsserver.com.
2. In Windows, right‑click the Start button and select Disk Managementvpsserver.com.
3. Locate the new SSD (labelled “Disk X” with unallocated space), right‑click and choose Initialize Diskvpsserver.com. Choose GPT unless you need MBR for legacy systems.
4. Create a new partition by right‑clicking the unallocated space and selecting New Simple Volume. Follow the wizard to assign a drive letter and format the partition.
5. The drive is now ready for use and will appear in File Explorer.

Step 8 – Restore or Clone Your Data

• If you cloned your old drive, the system should boot with all files intact. Check that everything works and update drivers as needed.

• If you performed a clean installation, restore your data from the backup. Reinstall applications and apply system updates.

Step 9 – Securely Erase the Old Drive (Optional)

If you plan to sell or discard the old drive, wipe it securely. Tools like DBAN, Secure Erase or manufacturer‑specific utilities permanently overwrite data. Do not simply format the drive; sensitive data can be recovered otherwise.

Step 10 – Reclaim the Old Drive

Don’t toss your old drive! You can repurpose it as an external storage device by placing it in a USB enclosure. This gives you extra space for backups or media. If it’s an HDD, consider using it only for infrequently accessed files.

Post‑Upgrade Optimization and Maintenance

Your new SSD should feel immediately faster, but a few tweaks can maximize its lifespan and performance:

1. Enable TRIM: Modern operating systems automatically send TRIM commands to tell the SSD which blocks are free. This maintains performance over time.
2. Ensure adequate free space: Keep at least 15–20 % of the drive empty. SSDs use over‑provisioning to manage wear; leaving free space ensures even wear and avoids performance drops.
3. Update firmware: SSD manufacturers occasionally release firmware updates to improve stability and performance. Check the vendor’s site periodically.
4. Avoid defragmentation: Defragmenting is unnecessary and can wear out NAND cells. The OS will optimise the file system automatically.
5. Monitor health: Use tools like CrystalDiskInfo or the vendor’s software to track drive temperature, write counts and health status.
6. Back up regularly: Even though SSDs are more reliable than HDDs, they can still fail. Follow a 3‑2‑1 backup strategy: three copies of your data, on two different media, with one copy off‑site.

Real‑World Examples

Example 1 – Photographer upgrading to 1 TB NVMe SSD: A Ghanaian freelance photographer used a 256 GB SATA SSD in a mid‑range laptop. After two years of storing high‑resolution photos and Lightroom cache files, the drive reached 95 % capacity. Editing sessions slowed as the system constantly swapped data. Following the steps above, she upgraded to a 1 TB NVMe drive. Boot times dropped from 25 seconds to about 12 seconds, and exporting 50 RAW files was nearly twice as fast. With more room for files, she no longer juggles external drives. According to HP’s guidelines, power users like photographers benefit from 1 TB or larger storagehp.com.

Example 2 – Remote developer using dual‑drive setup: A software developer runs virtual machines for testing. He replaced the 500 GB HDD in his aging laptop with a 512 GB SSD for his operating system and added a 2 TB external HDD for archival projects. The OS and code compile quickly on the SSD, while project archives live on the HDD. HP recommends this kind of dual setup for balancing cost and performancehp.com.

Example 3 – College student with low budget: A student with a 128 GB eMMC‑based laptop found the storage filled with course materials, offline media and games. She swapped the eMMC board (a type of soldered flash storage) with a 500 GB SATA SSD using an adapter and performed a clean installation of Windows. Following Crucial’s guidelines about static safety and step‑by‑step installationcrucial.com, she successfully upgraded her machine. She used the old eMMC board in a USB enclosure to back up assignments.

Security, Data Protection and Sustainability

Upgrading storage isn’t just a performance consideration; it’s also an opportunity to improve security and sustainability:

• Encrypt your drive: Use BitLocker on Windows or FileVault on macOS to encrypt your SSD. Encryption protects data on lost or stolen laptops without affecting performance noticeably.

• Dispose responsibly: Old drives contain metals and e‑waste. Recycle them at certified facilities or repurpose them as external storage. Many electronics stores accept drives for recycling.

• Data destruction: Use secure erase tools to prevent sensitive information from being recovered. Don’t rely on simple deletion or formatting.

• Energy savings: SSDs consume less power than HDDshp.com, extending battery life and reducing electricity usage. Upgrading to an SSD can therefore contribute to environmental sustainability, especially when paired with high‑efficiency power adapters.

Related FrediTech Guides

To explore related topics, check out these resources on FrediTech:

• Upgrading Your Laptop Storage: A Comprehensive 2025 Guide to SSD, HDD, and Beyond – A deep dive into storage technologies and upgrade strategies. It includes a detailed comparison of SSD types, capacity recommendations and maintenance tips.
• Portable Storage Solutions: Understanding Your Options, Maximizing Mobility – Learn about external SSDs, USB‑C drives and how to carry your data safely.
• Computer Performance Category – Browse a collection of articles about boosting laptop and desktop performance, including memory upgrades, cooling tips and software optimization.

These links provide additional context and can enhance your understanding of hardware upgrades.

FAQs About Laptop Storage Upgrades

Do I need professional help to upgrade my laptop storage?

Will upgrading my laptop storage void the warranty?

What capacity should I choose for gaming or video editing?

Can I use both an SSD and an HDD in my laptop?

How long do SSDs last?

What is the difference between SATA and NVMe?

Is cloning better than a fresh installation?

How can I check whether my laptop supports NVMe?

How much free space should I leave on my SSD?

Do I need to defragment my SSD?

Conclusion

Upgrading your laptop’s storage is one of the most impactful improvements you can make in 2025. By moving from a mechanical hard drive to an SSD, you unlock faster boot times, smoother application launches and better energy efficiency. When choosing a drive, consider capacity requirements—256 GB suffices for light use, 512 GB–1 TB suits productivity, and 1 TB or more is ideal for gamers and creatorshp.com. Market data shows that SSD shipments are growing rapidly, with an average capacity of over 1 TB per drive in 2024360researchreports.com and consumers increasingly choosing larger drives360researchreports.com.

This guide provided step‑by‑step instructions, from choosing a compatible SSD to installing it safely and restoring data. By following best practices—using static protectioncrucial.com, backing up your filesvpsserver.com, and selecting quality drives—you can upgrade with confidence. Whether you’re a student needing more space for assignments, a developer running virtual machines, or a creator editing high‑resolution media, the right storage upgrade transforms your laptop’s capabilities.

Author: Wiredu Fred – a senior technology journalist and hardware reviewer with over a decade of experience reviewing laptops, building PCs and explaining consumer technology. A regular contributor to independent tech magazines, they follow storage trends and test new drives every year to help users make informed decisions.
